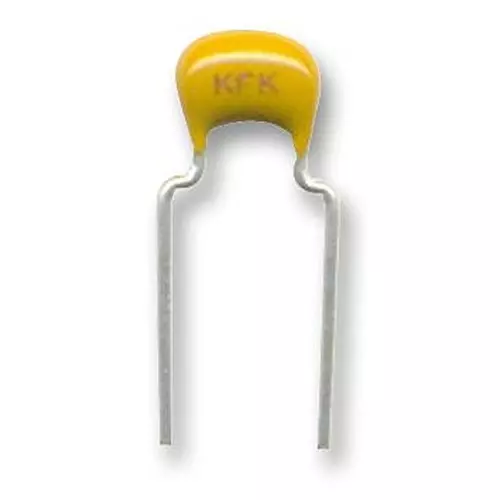

RS PRO Single Layer Ceramic Capacitor, Capacitance 10 nF, Voltage 2k V DC, Model No 1804822 (Bag of 500) is a type of electronic component widely used in various electrical and electronic circuits. It is a passive component that stores and releases electrical energy, and it is constructed using a ceramic material as the dielectric.
The dielectric material in a ceramic capacitor is typically made of ceramic compounds such as titanium dioxide, barium titanate, or a mixture of ceramic powders. These materials have high dielectric constants, which means they can store a relatively large amount of electrical energy in a compact size.
Ceramic capacitors are available in a range of capacitance values, voltage ratings, and package sizes to suit different application requirements. They come in two main types: class 1 and class 2.
Class 1 ceramic capacitors are known for their high accuracy and stability. They have low losses and exhibit a linear temperature coefficient, making them suitable for applications that require precise capacitance values and minimal changes with temperature. Class 1 capacitors are commonly used in radio frequency (RF) circuits, oscillators, filters, and timing circuits.
Class 2 ceramic capacitors, on the other hand, have higher capacitance values and are more cost-effective. They exhibit a nonlinear temperature coefficient and have higher losses compared to class 1 capacitors. Class 2 capacitors are widely used in decoupling and bypass applications, voltage regulators, power supply circuits, and general-purpose circuits.
Ceramic capacitors offer several advantages, including small size, high capacitance density, and low cost. They have excellent high-frequency characteristics, making them suitable for applications involving fast switching speeds and high-frequency signals. Ceramic capacitors are also known for their low equivalent series resistance (ESR) and equivalent series inductance (ESL), which contribute to their good performance in high-frequency applications.
However, ceramic capacitors also have some limitations. They can exhibit a phenomenon called the piezoelectric effect, where mechanical stress or vibration can induce electrical charges in the capacitor, affecting its performance. They may also experience a phenomenon called the voltage coefficient of capacitance, where the capacitance value can change with the applied voltage.
In summary, ceramic capacitors are widely used electronic components that store and release electrical energy. They offer advantages such as small size, high capacitance density, and low cost. Class 1 capacitors are known for their stability and accuracy, while class 2 capacitors are more cost-effective and suitable for general-purpose applications. Despite some limitations, ceramic capacitors are essential components in a wide range of electrical and electronic circuits.
