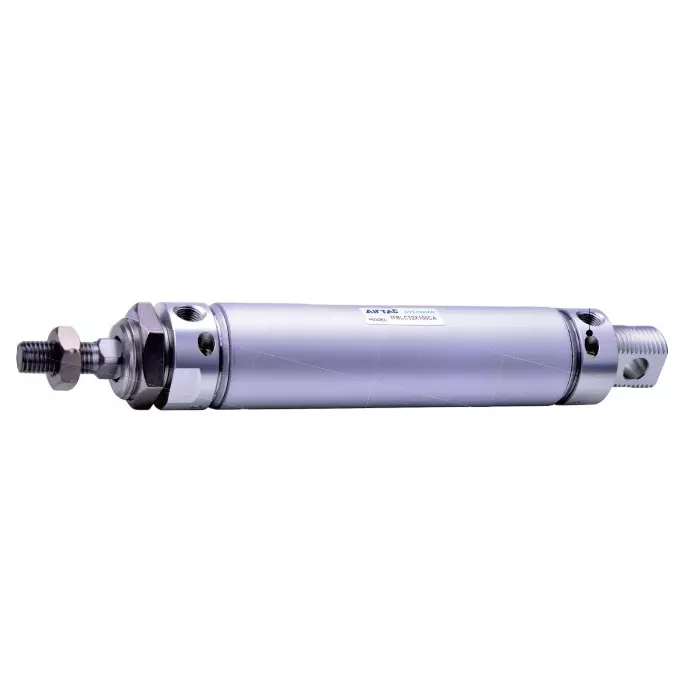

RS PRO Roundline Cylinder - 25mm Bore, 200mm Stroke, Double Acting Model No 1761626 is a type of mechanical actuator used to create linear motion from compressed air energy. It is one of the most common and widely used actuators in industrial automation, manufacturing, and various other applications that require controlled and precise linear movement.
The design of a roundline cylinder typically consists of a cylindrical tube (the cylinder barrel) with a piston mounted inside it. The piston divides the cylinder into two chambers: the rod side (front side) and the cap side (rear side). Compressed air is supplied through ports connected to these chambers.
Roundline cylinders are classified based on their mode of operation:
Single-Acting Cylinders: In single-acting cylinders, compressed air is supplied to only one chamber (usually the rod side) to move the piston in one direction. The return stroke is achieved by using an external force, such as a spring or a weight, to retract the piston when the air pressure is released.
Double-Acting Cylinders: In double-acting cylinders, compressed air is alternately supplied to each chamber to move the piston back and forth. This allows the cylinder to provide bi-directional motion, extending and retracting the piston as needed.
Roundline cylinders are available in various sizes, stroke lengths, and force capacities to accommodate different application requirements. They can also be equipped with various mounting options, such as flange, trunnion, or clevis mounts, to suit specific installation needs.
Applications of roundline cylinders include:
Factory Automation: Roundline cylinders are extensively used in robotics, material handling systems, and assembly lines for controlled linear motion and positioning of components.
Packaging Machinery: They find application in packaging machines for controlled movement of conveyor belts, packaging arms, and sealing equipment.
Material Handling: Roundline cylinders are used in lifts, clamps, and grippers for efficient material handling and positioning.
Automotive Industry: In automotive manufacturing, roundline cylinders are used for various applications, such as part insertion, assembly, and material transfer.
Construction: Roundline cylinders are employed in construction equipment for tasks such as lifting, pushing, and positioning heavy loads.
Advantages of roundline cylinders include:
Fast and Precise Movement: Roundline cylinders can achieve high-speed and accurate movements, making them suitable for applications requiring rapid response times and precise positioning.
Reliability: Pneumatic systems, including roundline cylinders, are generally reliable and durable, with minimal maintenance requirements.
Cost-Effectiveness: Pneumatic systems are often more economical than hydraulic or electric systems, making roundline cylinders a popular choice in many industries.
In summary, roundline cylinders are essential components in industrial automation and various applications that require controlled linear motion. Their versatility, reliability, and ease of control make them a widely used actuator in diverse industries, contributing to increased productivity and improved process automation.
