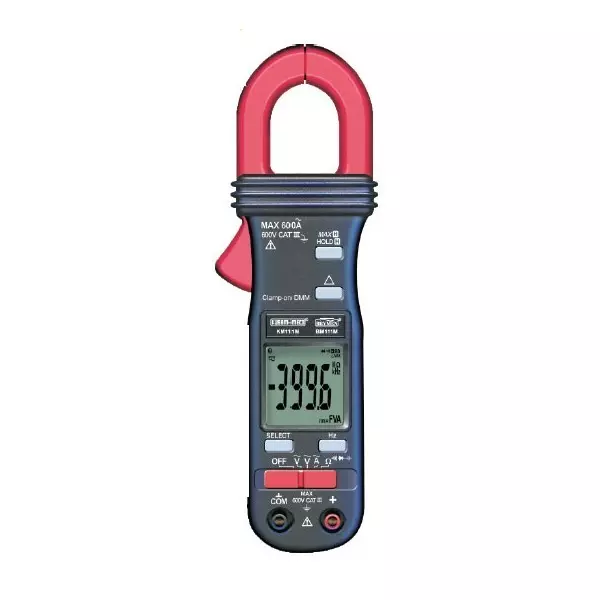

KUSAM-MECO 3¾ Digit 4000 Counts 600 A AC Autoranging Digital Clampmeter with Ultra Slim Jaw
specifications
description
Type of Product : Digital AC Clamp Meter
Display : 3¾ Digits LCD Display
Display Counts : 4000
Jaw Opening Size : 26 mm
Voltage Range (DC) : 400 mV-600 V
Voltage Accuracy (DC) : ±(1.0 % + 4 Digits)
Current Range (AC) : 0-600 A
Current Accuracy (AC) : ±(1.5 % + 8 Digits)
AC Current Resolution : 10 mA / 100 mA / 1 A
Voltage Range (AC) : 0-600 V
Voltage Accuracy (AC) : ±(2.0 % + 5 Digits)
Resistance Accuracy : ±(2.0 % + 4 Digits)
Capacitance Range : 500 nF-3000 µF
Capacitance Accuracy : ±(3.5 % + 6 Digits)
Frequency : 10 Hz-2 kHz
Frequency Accuracy : ±(0.5 % + 4 Digits)
Power : Single 3 V Coin Battery
Operating Environment : 0° to 40°C
Storage Environment : -20° to 60°C
Relative Humidity : < 80% RH
Weight : 139 g
Dimension : 190x63x32 mm
Maximum Voltage Range (DC) : 0-600 V
Max. AC Current Range : 401-600 A
Maximum Voltage Range (AC) : 0-600 V
Resistance Range (Ohm) : 0-40 MΩ
SKU ID:
ME.EL.DI6.160164
Senser
Average Sensing
No. of Functions
18 Function 30 Range
Model No
KM 111M
₹6,499
₹6,844
You save
₹345!
5.04% OFF
SKU ID:
ME.EL.DI6.160165
Senser
True RMS
No. of Functions
19 Function 30 Range
Model No
KM 112M
₹8,699
₹9,086
You save
₹387!
4.26% OFF
Page 1 of 1 results
